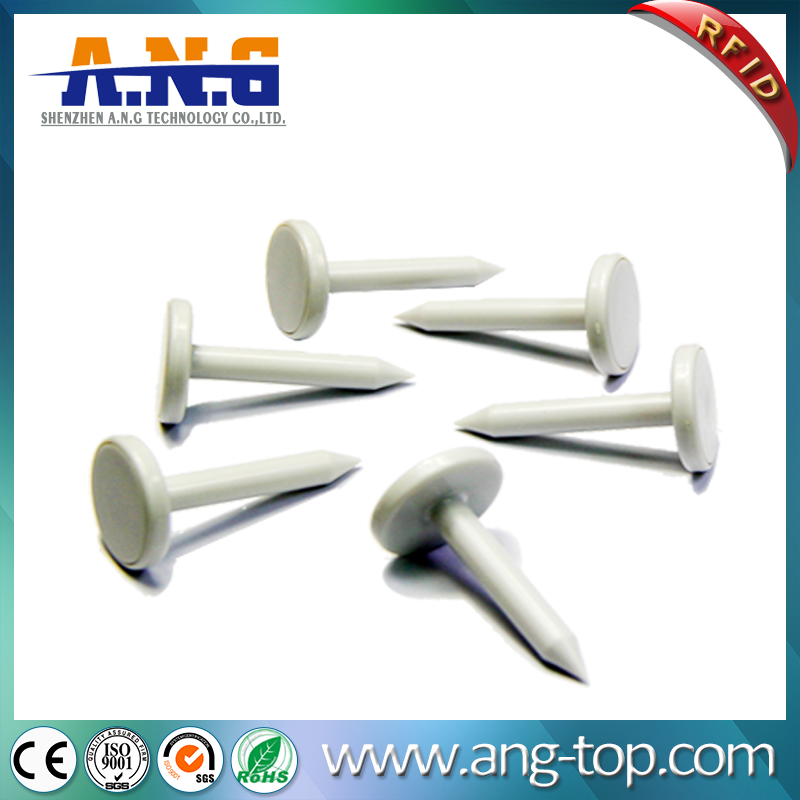

High Frequency Nail Shape RFID Tags For Tree Or Wood

High Frequency Nail Shape RFID Tags For Tree Or Wood

     RFID Nail tag is composed of plastic outer covering and robust RFID transponder inside, which could suit for extensive application even a harsh environment. Only need a narrow space, nail tag is widely applied in industrial and agricultural identification project.
A tiny cylindrical ferrite core assembled with a spring coil directly, as a RF antenna in Low Frequency, nail tag could get satisfied read range in direction of column, and its rust-resistant in wet ,matel and chemical environment.

Installation Method:

       Driven into the surface after drilling is recommended drill size not less than ¢ 5 * 33mm, thwack with a rubber hammer. Suitable for installation in cement products, precast, plastic products, trees and other non-metallic items.

Description:

1. Chip: 1K,I CODE SLI

2. Frequency: 13.56MHZ

3. Protocol Standard: ISO 14443A

4. HF Read range:0-5cm (Related to the chip ,antenna and reader)

5. Read/Write Endurance: 100,000 times

6. Operating Temperature : -20°C~85°C

Application areas:

Suitable for a variety of non-metallic materials management, security patrol, military packaging, packaging and labeling, vehicle identification, park management, tree management, asset identification management system.

Installation Method: embedded in the wood or in the wall can be.
