EM4305 RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

EM4305 RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

Shot Description:

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline Cylindrical underground pipe electronic information marker, the product consists of four parts: outer casing, sensing antenna, RFID chip and ferrite core. The outer casing is made of high-quality nylon engineering plastic. The gap between the ferrite core and outer casing is filled with epoxy resin, which has good performance in corrosion resistance and aging resistance. The working…

Description:

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

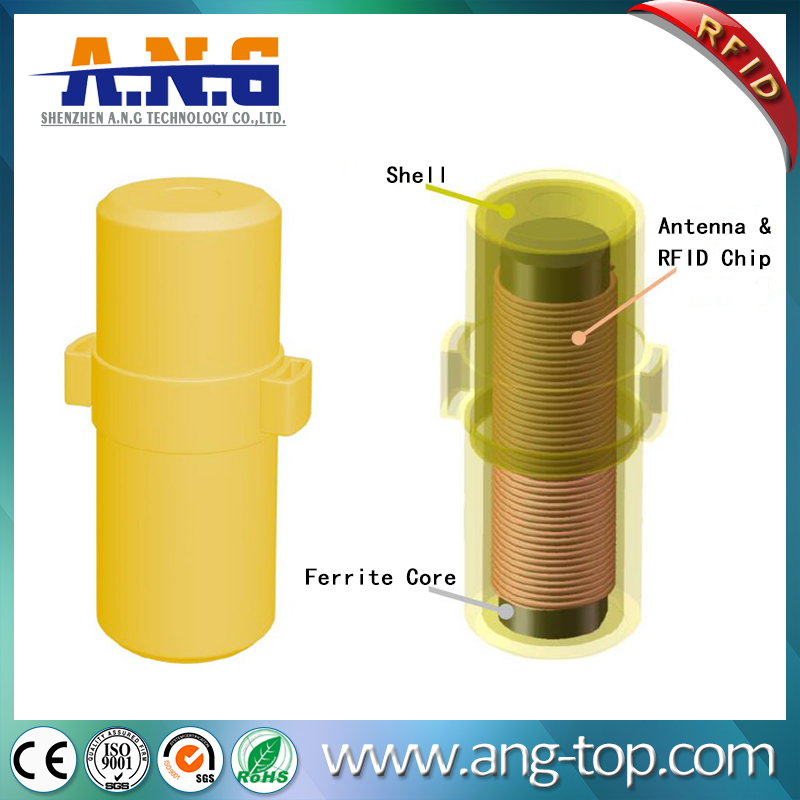

Cylindrical underground pipe electronic information marker, the product consists of four parts: outer casing, sensing antenna, RFID chip and ferrite core. The outer casing is made of high-quality nylon engineering plastic. The gap between the ferrite core and outer casing is filled with epoxy resin, which has good performance in corrosion resistance and aging resistance. The working frequency of the marker adopts the low frequency band, which has good penetration and obstacle ability, and the recognition distance is far (up to 2.5 meters), and maintenance-free. It is used for underground pipeline positioning and is buried near underground facilities. It can store the location of underground facilities, depth of burial, pipe diameter, pipe, date of installation, construction unit and date of use to facilitate the detection and identification of underground facilities in the future. It can also help management. Daily maintenance work. Can be widely used in urban high-density underground pipeline systems.



Material Shell: Nylon engineering plasticFiller: Epoxy Resin

Magnetic Core: Ferrite Core

Color Yellow

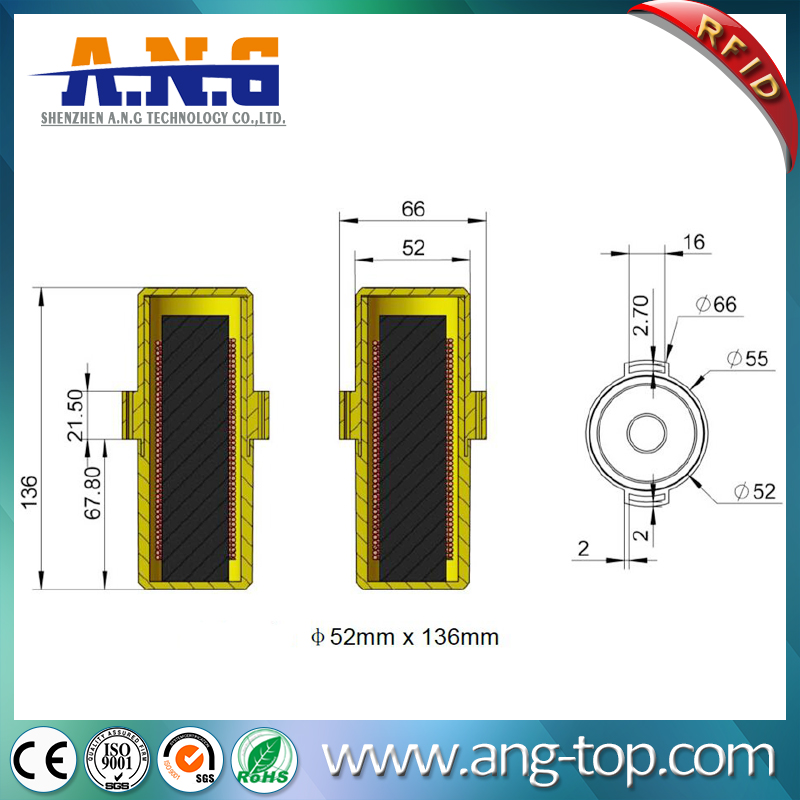

Size Φ52mm*136mm
Weight 710g
Working Temperature -25℃ ~ +65℃ (no frozen)
Storage Temperature -40℃ ~ +80℃(no frozen)
Chemical Resistance IP67



Specification

Mode Read and Write
Memory EEPOM 528bitUser Data 192bit
ID Number Unique 15 bits UID number
Working Frequency 125Khz
Protocol ISO11784 / 11785
Data Storage >30 years
Write Endurance >100,000 cycles
Power Supply Passive
Operating Distance 0.2-2.5 meters

6

3

4

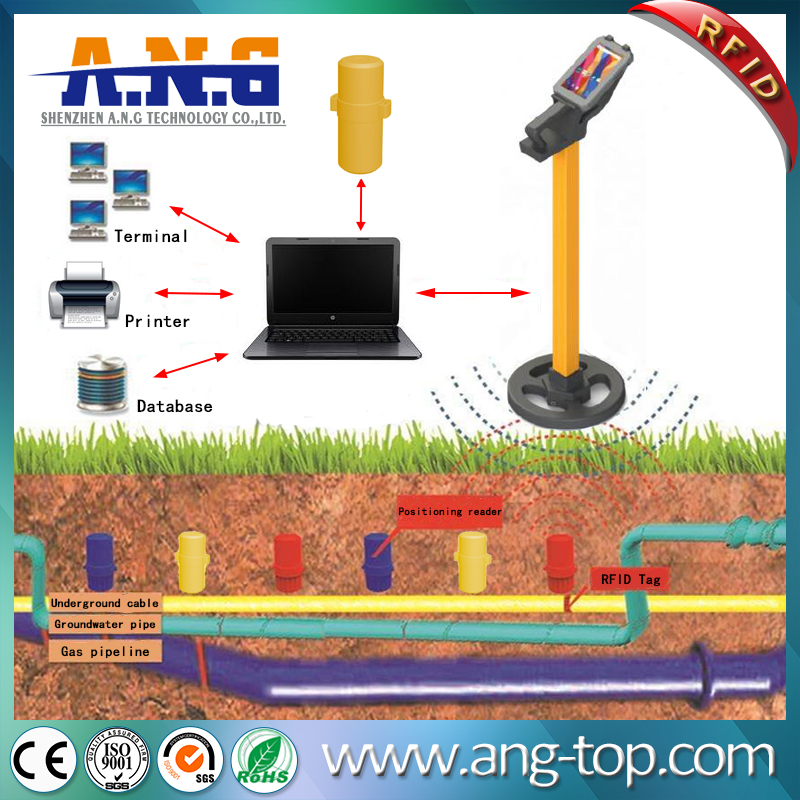

Application-1
