Hf RFID Tags Ultralight EV1 4k Adhesive Paper Label 56*18mm

Shot Description:

HF RFID Tags ULTRALIGHT EV1 4K Adhesive Paper Label 56*18mm These rectangular (56mm x 18mm) MIFARE ULTRALIGHT EV1 RFID adhesive labels have blank matt paper on the top, which protects the chip and the antenna underneath. Thanks to their permanent adhesive layer with release paper (on the backside of the label), they can be easily fixed to the items for asset tracking. They can be personalised for example with barcode…

Description:

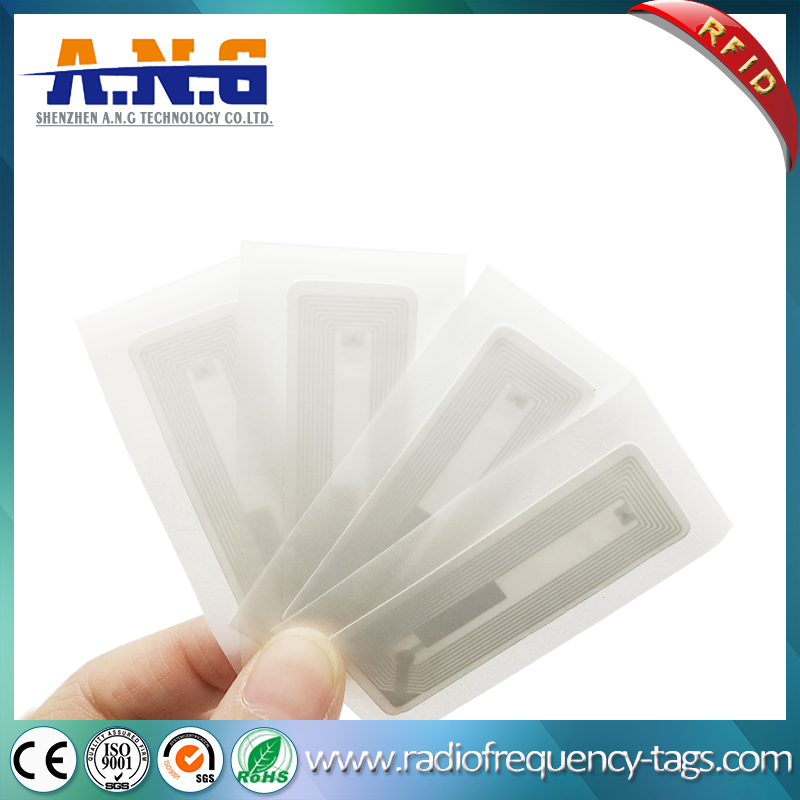

HF RFID Tags ULTRALIGHT EV1 4K Adhesive Paper Label 56*18mm

These rectangular (56mm x 18mm) MIFARE ULTRALIGHT EV1 RFID adhesive labels have blank matt paper on the top, which protects the chip and the antenna underneath. Thanks to their permanent adhesive layer with release paper (on the backside of the label), they can be easily fixed to the items for asset tracking. They can be personalised for example with barcode or company logo.
For more infomartion please take a look at the datasheet or contact us.

Parameter:

Frequency	13.56 MHz
Compliance	ISO/IEC 14443 Type A, NFC Forum Type 2
Memory Size	640-bit or 1312-bit (First 512 bits compatible to MIFARE Ultralight® MF0ICU1)
Features	Serial Number: 7-Byte UID (Unique Identifier)
	ECC based originality signature
	Data integrity of 16-bit CRC, parity, bit coding, bit counting
	Fast counter transaction: < 10 ms
	Data transfer of 106 kbit/s
	True anticollision
Available Types	Paper Label, PVC Label, PET Label
	Dry Inlay, Wet Inlay
	Anti-tear / Tamperproof Label, Label with Cutting Lines
	Windshield Tag
	On-Metal (Anti-Metal) Label
	Certain types may not be available in all sizes
Temperature	-25 to 50 Celsius
Dimensions	According to customer’s requirements.
Printing Options	Full-color offset printing, Silkscreen printing
Number Printing Options	Inkjet, Thermal Flat, Laser

Non-volatile memory

256 bytes application memory
Data retention of 10 years
Write endurance typical 500 000 cycles

NV-memory organization

Flexible file system
Number of applications and files per application depending on available memory
File types supported: standard data file, back-up data file, value file, linear record file and cyclic record file
File size is determined during creation

Security

Based on the same Common Criteria EAL4+ certified MIFARE DESFire EV1 platform
Unique 7 bytes serial number for each device
Optional “RANDOM” ID for enhance security and privacy
Mutual three-pass authentication
Mutual authentication according to ISO/IEC 7816-4
1 card master key and up to 14 keys per application
Hardware DES using 56/112/168 bit keys featuring key version, data authenticity by 8 byte CMAC
Hardware AES using 128-bit keys featuring key version, data authenticity by 8 byte CMAC
Data encryption on RF-channel
Authentication on application level
Hardware exception sensors
Self-securing file system
Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16

Special features

Transaction-oriented automatic anti-tear mechanism
Configurable ATS information for card personalization
Backward compatibility mode to MF3ICD40
Optional high input capacitance (70 pF) for small form factor design (MF3ICDHQ1)

Application:

Public transportation
Event ticketing
Loyalty

About us: Shenzhen A.N.G Technology CO., Ltd located in Shenzhen, is a high-tech manufacturer specialized in production Radio Frequency Identification Smart Card, NFC Label and Card Reader.

1. Wide Range Products Item
2. Better Price With High Quality And Professional Package.
3. Be Specialized In RFID Tag, NFC Tag And Smart Card For Long Time.
4. Customize Products Depending On Different Project From Customers.
5. Professional Designer, Experienced Salesman And Workers.
6. Advanced Production Experience and Professional R&D Capability.

Packages:

By Roll / Sheet / Full Sheet
The Diameter of the roll is 3 inch
1000PCS / roll (or 500PCS / roll)
Wrap-Shrink
1000PCS / carton; 3000PCS / carton;
5000PCS / carton; 10000PCS / carton

Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
