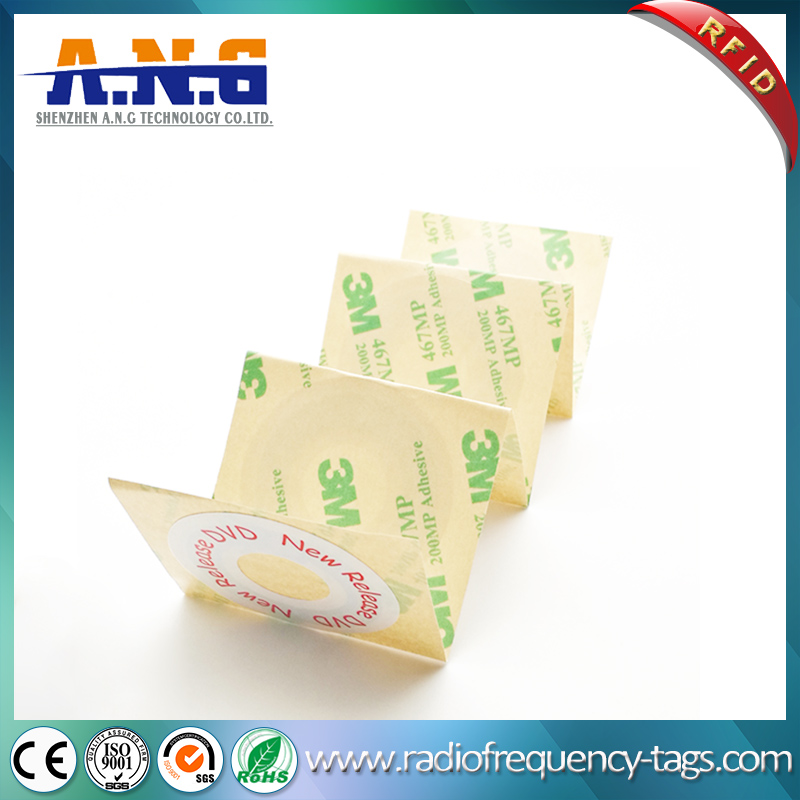

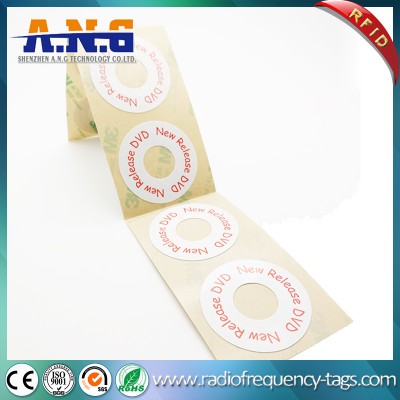

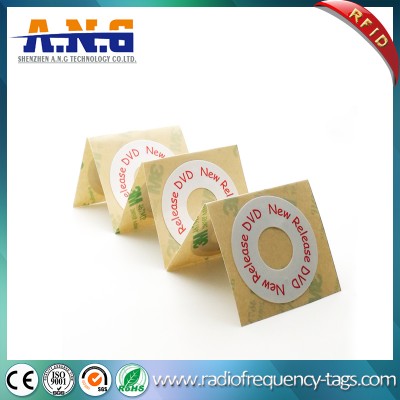

40*16mm Anti-Theft UHF Passive RFID CD DVD Label Sticker

40*16mm Anti-Theft UHF Passive RFID CD DVD Label Sticker

Shot Description:

40*16mm Anti-theft UHF Passive RFID CD DVD Label Sticker The RFID CD DVD Label Sticker Protocol standard is ISO18000, the Operation Frequency is 860~960MHz, Reading range is about 1m (vary from different reader and environment)) , the Chip can be rewritable, Also can be encrypt, It may well protect the safety and privacy of customers The RFID CD DVD Label Sticker is small and easy to use, with size 40*16mm, Is…

Description:

40*16mm Anti-theft UHF Passive RFID CD DVD Label Sticker

The RFID CD DVD Label Sticker Protocol standard is ISO18000, the Operation Frequency is 860~960MHz, Reading range is about 1m (vary from different reader and environment)) , the Chip can be rewritable, Also can be encrypt, It may well protect the safety and privacy of customers

The RFID CD DVD Label Sticker is small and easy to use, with size 40*16mm, Is dedicated to CD management ,When we need to use, you can tear off the back of the tag, If you need to  waterproof, can be used PVC or PET material.

Description:

1.         Chip: Alien H3
2.         Frequency: 860~960MHZ
3.         User memory : 512 bits
4.         Protocol Standard: Standard : ISO18000
5.         UHF Read range: 1m (Related to the chip ,antenna and reader)
6.         Read/Write Endurance: 100,000 times
7.         Operating Temperature : -20°C~85°C

Packages:

By Roll / Sheet / Full Sheet
The Diameter of the roll is 3 inch
1000PCS / roll (or 500PCS / roll)
Wrap-Shrink
1000PCS / carton; 3000PCS / carton;
5000PCS / carton; 10000PCS / carton

Applications:

CD/DVD Management
NFC Mobile phone Payment function
Logistics
Asset Management
Retai Management
Pharmaceutical Management
Supply chain Management
Sample Products
Events Ticket
Library Tag

About us: Shenzhen A.N.G Technology CO., Ltd located in Shenzhen, is a high-tech manufacturer specialized in production Radio Frequency Identification Smart Card, NFC Label and Card Reader.

1. Wide Range Products Item
2. Better Price With High Quality And Professional Package.
3. Be Specialized In RFID Tag, NFC Tag And Smart Card For Long Time.
4. Customize Products Depending On Different Project From Customers.
5. Professional Designer, Experienced Salesman And Workers.
6. Advanced Production Experience and Professional R&D Capability.

Model Label Size(mm) Antenna Size(mm) S50 Ultralight FM1108 I-Code2 H3/H4 M4/M5
Windshield Tag 100*100 93*19 N N N N Y N
Windshield Tag 102*77 80*40 N N N N Y Y
Anti-Tear Label 50*50 45*45 Y Y Y Y Y Y
On-Metal Tag 50*35 37*22 Y Y Y Y N N
Gas Cylinder Tag 46*31 37*22 Y Y Y Y N N
Library Label Tag 45*45 Φ40 Y Y Y Y N N
DVD Label Φ45 Φ40 Y Y Y Y Y Y
Bottle Tag 130*30 119*21 N N N Y Y Y
Jewelry Label 120*15 83*11 N N N N Y N
Label/Inlay Φ40 Φ34 Y Y Y Y N N
Label/Inlay Φ25 Φ22 Y Y Y Y N N
Label/Inlay 18*18 15*15 Y Y Y Y N N

EPC 13.56 Mhz HF Rfid Tags / Stickers For Disc Manegement , 0.5mm Thickness
