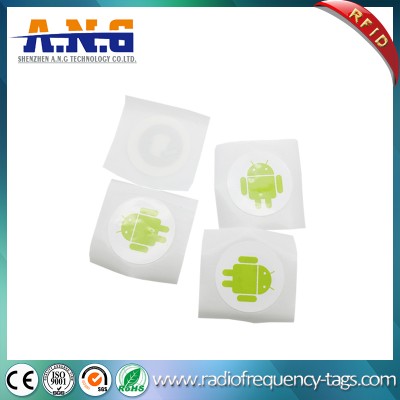

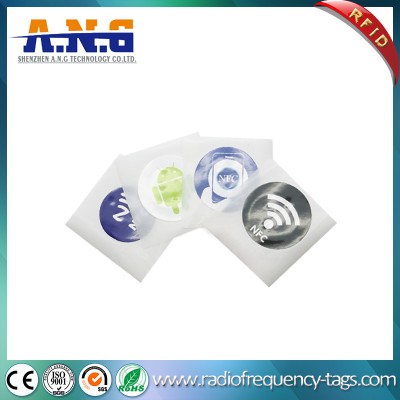

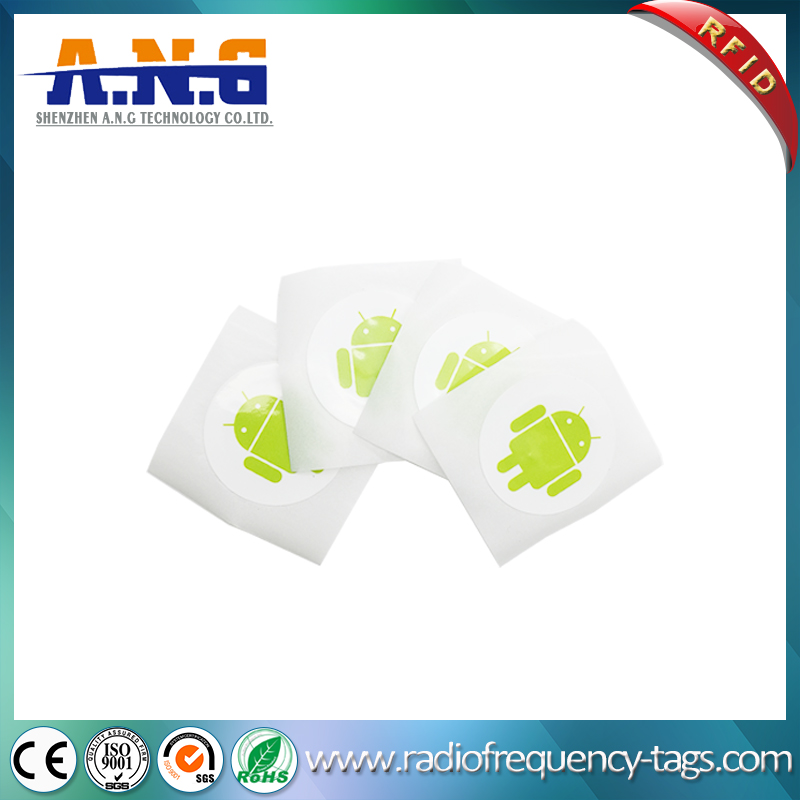

Printed Sticker ID Easing Installation Reliable NFC Ntag213 Chip

Printed Sticker ID Easing Installation Reliable NFC Ntag213 Chip

Shot Description:

Printed Sticker ID easing installation Reliable NFC NTAG213 chip This NFC tag is a self-adhesive Polyamide tag that operates at 13.56 MHz wireless frequency and contains 137 bytes of usable read/write space for NDEF data. Based on the NTAG213 chip , this tag offers advanced security, anti-cloning features as well as a permanent lock feature, therefore user data can be permanently configured read-only. The NTAG213 is a replacement for the…

Description:

Printed Sticker ID easing installation Reliable NFC NTAG213 chip

This NFC tag is a self-adhesive Polyamide tag that operates at 13.56 MHz wireless frequency and contains 137 bytes of usable read/write space for NDEF data. Based on the NTAG213 chip , this tag offers advanced security, anti-cloning features as well as a permanent lock feature, therefore user data can be permanently configured read-only. The NTAG213 is a replacement for the popular NTAG203 chip and is fully compatible with MF Ultralight C.

Subject to memory size, this tag is suitable for storingany type of URI including URLs, telephone numbers, SMS, e-mail and geo-locations plain text or a combination of plain text and a URI vCards and signatures

NTAG213 nfc tag sticker specifications:

Product Sustainable sticker Printed ID for easing installation Reliable NFC NTAG213 chip
Material paper or plastic pvc/ PET
Size 25-30-35-40mm round or square shape
Chip FUDAN F08,NFC NTAG213,215,216 etc
Antenna Aluminum antenna with chip-flip
Rentention 5-10years
Reading time 100000times
Avaliable crafts off-set preprinting, silk screen preprinting ,encoding ,etc
Frequency HF 13.56MHz
Protocol ISO14443A
Memory capacity 1K byte , 512bit ,etc.
Application mobile phone smart payment/ transpotation fee / smart access control/ pormotion advertising / retailing management
Production time 7–15days /10000pcs
Payment T/T by Bank or western union
Price term EXW, Competitive price; FOB ,CIF,etc
Shipment BY Air express or sea
Package neutral package in piece or in roll
Monthly capacity 6,000,000pcs/month
MOQ 1000pcs/size
Leadtime 4-5 day for 5k of NTAG213 nfc tag sticker

Typical application areas include:

smart posters, advertising displays, kiosks and bus stop advertisements
guard rounds, home care applications, refuse bins and pallet ID
contactless ID/ticketing
embedding in devices
Public Transportation
loyalty and payment

This tag is NFC forum type 2 compliant and typically operates at a distance of up to 5cm depending on the power provided by the NFC enabled device.

Supplied as 35mm diameter x 4mm thick self-adhesive Polyamide tags.

Packages:

By Roll / Sheet / Full Sheet
The Diameter of the roll is 3 inch
1000PCS / roll (or 500PCS / roll)
Wrap-Shrink
1000PCS / carton; 3000PCS / carton;
5000PCS / carton; 10000PCS / carton

About us: Shenzhen A.N.G Technology CO., Ltd located in Shenzhen, is a high-tech manufacturer specialized in production Radio Frequency Identification Smart Card, NFC Label and Card Reader.

Model Label Size(mm) Antenna Size(mm) S50 Ultralight FM1108 I-Code2 H3/H4 M4/M5
Windshield Tag 100*100 93*19 N N N N Y N
Windshield Tag 102*77 80*40 N N N N Y Y
Anti-Tear Label 50*50 45*45 Y Y Y Y Y Y
On-Metal Tag 50*35 37*22 Y Y Y Y N N
Gas Cylinder Tag 46*31 37*22 Y Y Y Y N N
Library Label Tag 45*45 Φ40 Y Y Y Y N N
DVD Label Φ45 Φ40 Y Y Y Y Y Y
Bottle Tag 130*30 119*21 N N N Y Y Y
Jewelry Label 120*15 83*11 N N N N Y N
Label/Inlay Φ40 Φ34 Y Y Y Y N N
Label/Inlay Φ25 Φ22 Y Y Y Y N N
Label/Inlay

Self – adhesive NTG213 NFC sticker rfid tags / Contactless smart label
