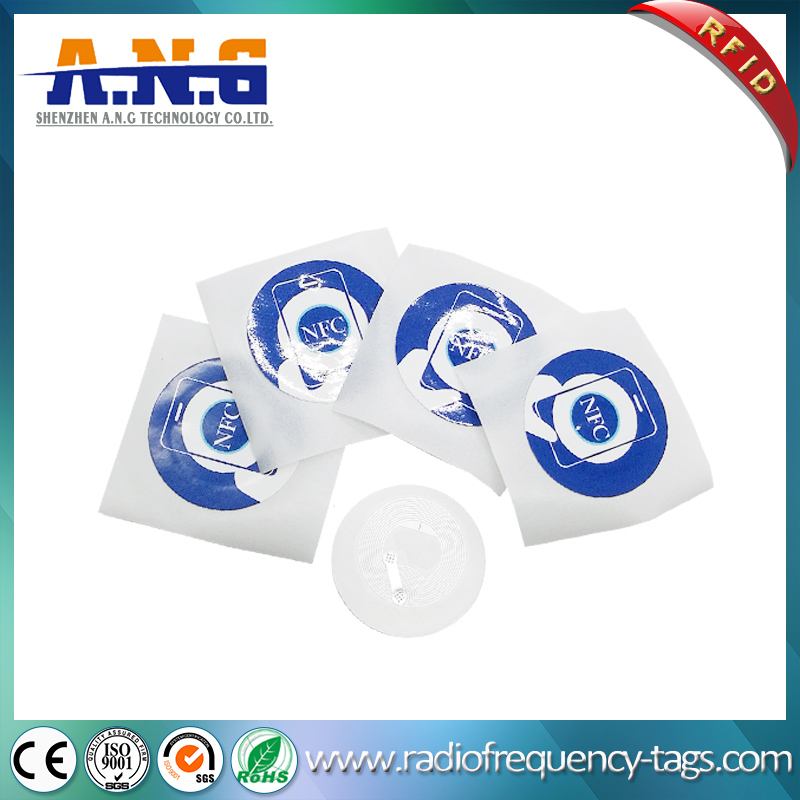

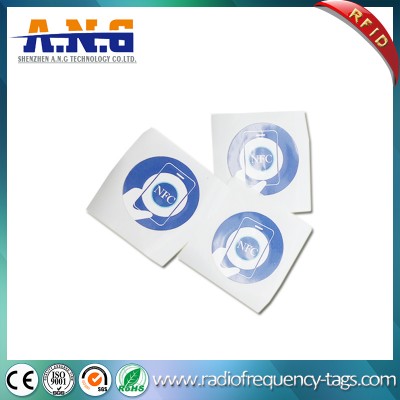

NFC Stickers Ntag213 Round Diameter 22mm Hf RFID Tags

NFC Stickers Ntag213 Round Diameter 22mm Hf RFID Tags

Shot Description:

NFC Stickers Ntag213 Round Diameter 22mm HF RFID tags NTAG213 Stickers Technical Specifications Integrated Circuit (IC): NTAG213 Air interface protocol: ISO 14443 A Operation Frequency: 13.56 MHz Memory: 144 bytes Operating temperature: from -25°C to 70°C / from -13°F to 158°F ESD voltage immunity: ±2 kV peak HBM Bending diameter: > 50 mm, tension less than 10 N Product Specifications: Chip Type NTAG213 Total Memory 144 bytes Available NDEF Message…

Description:

NFC Stickers Ntag213 Round Diameter 22mm HF RFID tags

NTAG213 Stickers Technical Specifications

Integrated Circuit (IC): NTAG213
Air interface protocol: ISO 14443 A
Operation Frequency: 13.56 MHz
Memory: 144 bytes
Operating temperature: from -25°C to 70°C / from -13°F to 158°F
ESD voltage immunity: ±2 kV peak HBM
Bending diameter: > 50 mm, tension less than 10 N

Product Specifications:

Chip TypeNTAG213
Total Memory144 bytes
Available NDEF Message Size137 bytes
NFC Forum TypeType 2
Dimensions22mm round
MaterialPaper

Dimensions

Antenna size: 20 mm / 0.787 inches
Die-cut size: 22 mm / 0.866 inches
Overall thickness: 136 μm
Materials
Transponder face material: Clear PET 12
Transponder backing material: Siliconized Paper 56
Transponder antenna material: Aluminum, crimped coil

NTAG213 Chips support password-protection and other features: see all NTAG21x features
Please note: these Tags don’t work on metal surfaces.
Do you need Tags with larger memory? Try Ntag216

Packages:

By Roll / Sheet / Full Sheet
The Diameter of the roll is 3 inch
1000PCS / roll (or 500PCS / roll)
Wrap-Shrink
1000PCS / carton; 3000PCS / carton;
5000PCS / carton; 10000PCS / carton

Applications

1.Smart advertisement
2.Goods and device authentication
3.Call request
4. SMS
5.Call to action
6. Voucher and coupons
7.Bluetooth or Wi-Fi pairing
8. Connection handover
9.Product authentication
10.Mobile companion tags
11. Electronic shelf labels
12. Business cards

About us: Shenzhen A.N.G Technology CO., Ltd located in Shenzhen, is a high-tech manufacturer specialized in production Radio Frequency Identification Smart Card, NFC Label and Card Reader.

1. Wide Range Products Item
2. Better Price With High Quality And Professional Package.
3. Be Specialized In RFID Tag, NFC Tag And Smart Card For Long Time.
4. Customize Products Depending On Different Project From Customers.
5. Professional Designer, Experienced Salesman And Workers.
6. Advanced Production Experience and Professional R&D Capability.

ModelLabel Size(mm)Antenna Size(mm)S50UltralightFM1108I-Code2H3/H4M4/M5
Windshield Tag100*10093*19NNNNYN
Windshield Tag102*7780*40NNNNYY
Anti-Tear Label50*5045*45YYYYYY
On-Metal Tag50*3537*22YYYYNN
Gas Cylinder Tag46*3137*22YYYYNN
Library Label Tag45*45Φ40YYYYNN
DVD LabelΦ45Φ40YYYYYY
Bottle Tag130*30119*21NNNYYY
Jewelry Label120*1583*11NNNNYN
Label/InlayΦ40Φ34YYYYNN
Label/InlayΦ25Φ22YYYYNN
Label/Inlay18*1815*15YYYYNN

ISO14443 RFID Passive Tags / Paper nfc chip sticker For Mobile Payment
