ISO15693 I Code SLI PET RFID Tags Passive RFID Sticker The ICODE SLIX-S IC is a dedicated chip for smart label applications with the need for a higher security level, larger memory and/or a product which takes care of the increasing demand for perfect customer privacy. This IC is the third generation of a product family of smart label ICs based on the ISO standards ISO/IEC 15693 With 50 years…

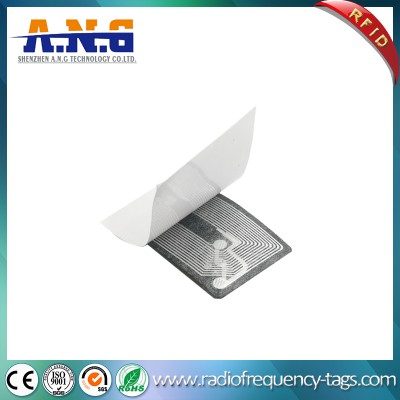

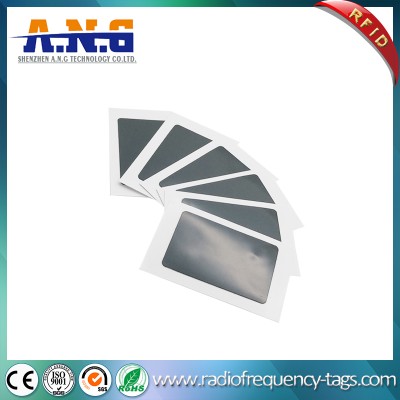

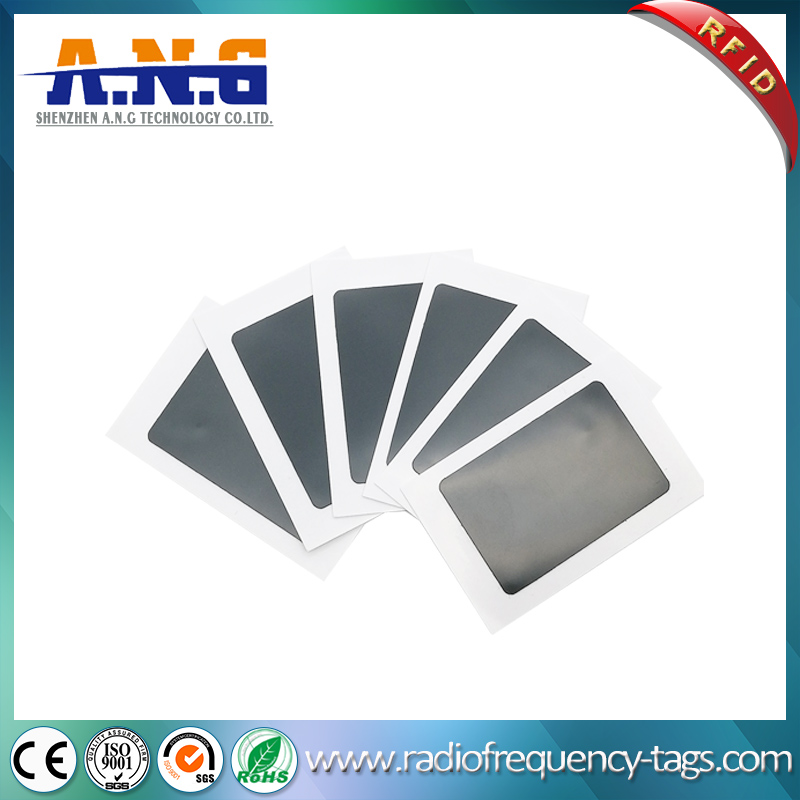

ISO15693 I Code SLI PET RFID Tags Passive RFID Sticker
The ICODE SLIX-S IC is a dedicated chip for smart label applications with the need for a higher security level, larger memory and/or a product which takes care of the increasing demand for perfect customer privacy. This IC is the third generation of a product family of smart label ICs based on the ISO standards ISO/IEC 15693
With 50 years guaranteed data retention they are the ideal choice for libraries, archives and other long-term applications.
PET substrate and aluminum coating metal etching process production Or PI and copper antenna, That with good waterproof, dust proof performance.
Name | ICODE SLIS label |
Material | PET |
Dimension | CUSTOMED |
Application | - Automatic production management - Asset tracking - Device embedded - Material identification |
Treatment | Printing,Encoding, Encryption,etc. |
Personlize | Adhesive, anti metal, etc |
Chip Frequence | 125KHZ,132.5KHZ,13.56MHZ,860-960MHZ |
Structure | Gluing, lamination |
Optional Characters | Anti-tearing strength, waterproofing, friction resistance, sunlight resistance, bend resistance,etc. |
Read range | From 1mm to 10meters upon different frequence chips |
MOQ | Usually 1000pcs per item for custom, discussed for stock |
Applications:
Libraries
Healthcare
Document tracking
Pharmaceuticals
Factory automation
Casino gaming
Product authentication
Key Features:
Market-leading RF performance
Full backwards compatibility with installed SLI solutions
High reliability of communication
50 years data retention
All SLIX products are available in standard and high capacitance variants
Optional 32 bits password protection
EAS, AFI features
User memory: 256 to 1280 bits
RF interface: ISO15693, ISO 18000-3.1
Anti-collision performance: 60 tag/s
Package options: sawn wafer, FCS, SOT1122 package
Packages:
By Roll / Sheet / Full Sheet | |||
The Diameter of the roll is 3 inch | |||
1000PCS / roll (or 500PCS / roll) | |||
Wrap-Shrink | |||
1000PCS / carton; 3000PCS / carton; | |||
5000PCS / carton; 10000PCS / carton |
About us: Shenzhen A.N.G Technology CO., Ltd located in Shenzhen, is a high-tech manufacturer specialized in production Radio Frequency Identification Smart Card, NFC Label and Card Reader.
Model | Label Size(mm) | Antenna Size(mm) | S50 | Ultralight | FM1108 | I-Code2 | H3/H4 | M4/M5 |
Windshield Tag | 100*100 | 93*19 | N | N | N | N | Y | N |
Windshield Tag | 102*77 | 80*40 | N | N | N | N | Y | Y |
Anti-Tear Label | 50*50 | 45*45 | Y | Y | Y | Y | Y | Y |
On-Metal Tag | 50*35 | 37*22 | Y | Y | Y | Y | N | N |
Gas Cylinder Tag | 46*31 | 37*22 | Y | Y | Y | Y | N | N |
Library Label Tag | 45*45 | Φ40 | Y | Y | Y | Y | N | N |
DVD Label | Φ45 | Φ40 | Y | Y | Y | Y | Y | Y |
Bottle Tag | 130*30 | 119*21 | N | N | N | Y | Y | Y |
Jewelry Label | 120*15 | 83*11 | N | N | N | N | Y | N |
Label/Inlay | Φ40 | Φ34 | Y | Y | Y | Y | N | N |
Label/Inlay | Φ25 | Φ22 | Y | Y | Y | Y | N | N |
Label/Inlay | 18*18 | 15*15 | Y | Y | Y | Y | N | N |
